Metal Foil Punching Machine PX1510
Metal Foil Punching Machine » PX1510

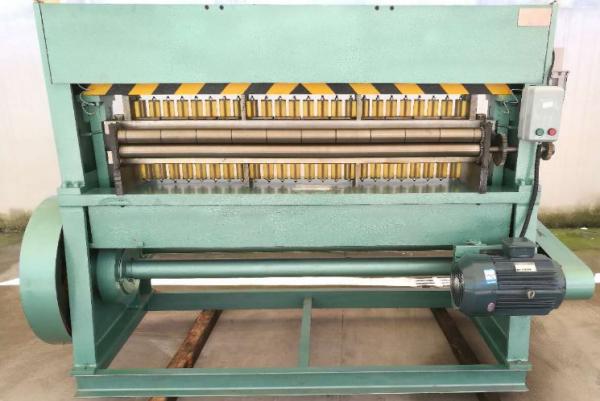

Pictures available of Metal Foil Punching Machine:

PX1510

Metal Foil Punching Machine

Metal Foil Punching Machine is used to punch the metal foil before making the Tanged SS reinforced graphite sheet.

Enquiry Now

Metal Foil Punching Machine Details



Specification as following:



STYLE

PX1510 Metal Foil Punching Machine

Thickness of metal

0.1--0.15mm for stainless steel,
0.1--0.18mm for tinplate

Maximum gasket sheet width

1530mm

Total power

7.5KW

Power supply (as per name plate)

380V 3P4W or 220V 3P3W, 50--60HZ

Punching speed

78times/minute

Hole pitch

3*3mm

Hole diameter

Dia. 1.5mm

Machine measurement

2500*1500*1700mm

Machine net weight

2500KG
