- Calender machine PX1520

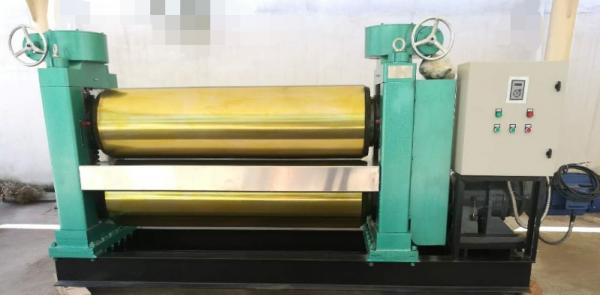

Pictures available of Calender machine:
- PX1520
Calender machine
Calender machine is used to compound graphite, asbestos and non-asbestos etc non-metallic sheet reinforced with tanged or smooth metal foil insertion to make gasketing sheet, SS reinforce graphite sheet.
Enquiry Now Calender machine Details
Specification as following:：
STYLE
PX1520 Calender machine
Thickness of gasket sheet
1.0-5.0mm Thick.
Maximum gasket sheet width
1600mm
Total power
7.5KW
Power supply (as per name plate)
380V 3P4W or 220V 3P3W, 50--60HZ
Roller diameter
450mm
Linear Speed
0--7500mm/minute
Machine measurement
3650*800*1650mm
Machine net weight
6000KG
