Medium size semi-automatic winding machine PX1200S-2
Medium size semi-automatic winding machine » PX1200S-2

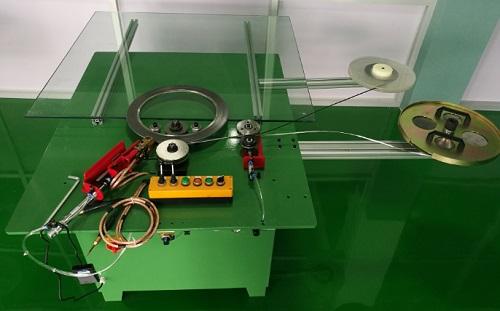

Pictures available of Medium size semi-automatic winding machine:

PX1200S-2

Medium size semi-automatic winding machine

This machine was designed to winding gasket from 150 to 1200mm diameter spiral wound gasket.
Both manual model and automatic model available.
Can winding any shape of SWG

Enquiry Now

Medium size semi-automatic winding machine Details

Specification as following:



STYLE

PX1200S-2 Semi-automatic

Producing ability

spiral wound gasket with or without inner ring

Special function

 any shape of SWG

SWG thickness

4.5mm (also suitable for 3.2mm,6.4mm and 7.2mm after changing roller parts, V shape winding or W shape winding)

Automatic function

PLC size controlling,
semi-Automatic spot welding

Maximum gasket OD

1000mm

Minimum gasket ID

100mm

Total power

8kw

Spindle motor power

1.5kw

welder power

6kw

Frequency Converter

2.2G

PLC

xinjie

Power supply voltage

380V/220V for option, 3 phases

linear speed

0-800mm/s

Air compressor

0.6—0.8 MPA

Machine measurement

1680*1500*950MM

Machine net weight

300 kg
