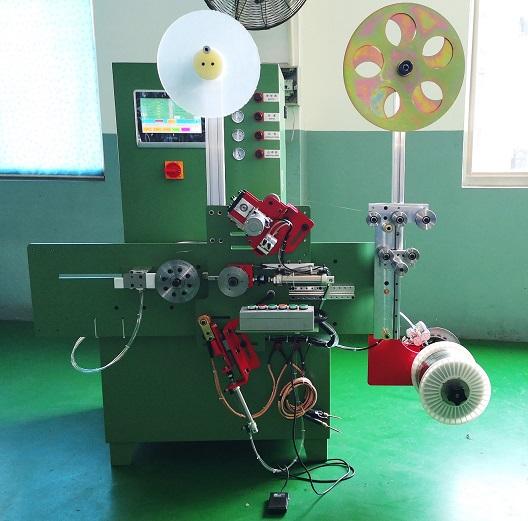

Automatic winding machine PX500D
Automatic winding machine » PX500D
Click to enlarge

Pictures available of Automatic winding machine:

PX500D

Automatic winding machine

PX500D Automatic Winding machine is updated from PX500C model, it’s our newest model for manufacturing spiral wound gasket form 1/2” to 12”. Although it can produce maximum diameter up to 500mm, but recommend to produce up to 10” or 12”. For bigger size, we suggest you choose our horizontal winding machine. On base of PX500C model, PX500D has updated many main parts like PLC, touch screen, servo driver, and welding control parts, the program is also updated. PX500D has improved a lot in production speed, machine steadiness, welding quality, and gasket finish. PX500D is the most popular and important machine for spiral wound gasket manufacturing.

Enquiry Now

Automatic winding machine Details



STYLE

PX500D



Automatic winding machine for SWG



Working mode

Both Manual and Automatic mode



SS strip

both pre-formed SS strip in pancake or 20-25kgs spool of flat strip



Producing ability

Standard package including models for 1"-10" 150# SWG with or without inner ring, other size model on request with extra charge



SWG thickness

4.5mm (also suitable for 3.2 and 6.4mm after changing roller parts with extra change, V shape winding or W shape winding for option)



Automatic function

PLC size controlling, Automatic spot welding, with SS strip forming roller, Automatic SS strip cutting.




Maximum gasket OD

500mm



Minimum gasket ID

25mm



Gasket OD tolerance

±0.2mm



Spindle speed

0--300rpm



Total power

8kw



Spindle motor power

1.5kw



Welder power

6kw



Power supply voltage

380V or 220V for option, 3 phases



AIR COMPRESSER

0.6-0.8 MPA



PLC

xinjie



Production rate

18-25s /pc    (for ANSI 6" 150LB)



Machine measurement

1400*1200*1650mm



Machine net weight

400kg
