Automatic Kammprofile Gasket machine PX1360C
Automatic Kammprofile Gasket machine » PX1360C

Pictures available of Automatic Kammprofile Gasket machine:

PX1360C

Automatic Kammprofile Gasket machine

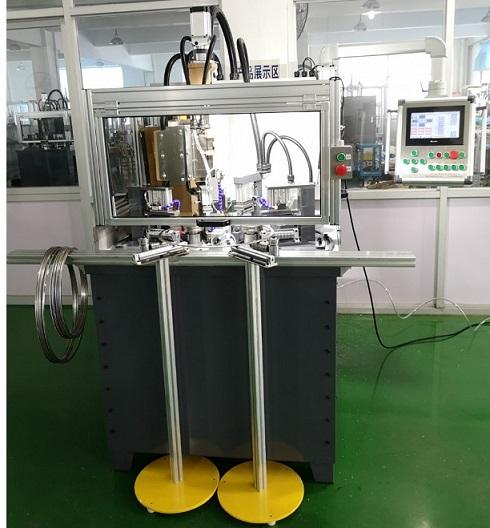

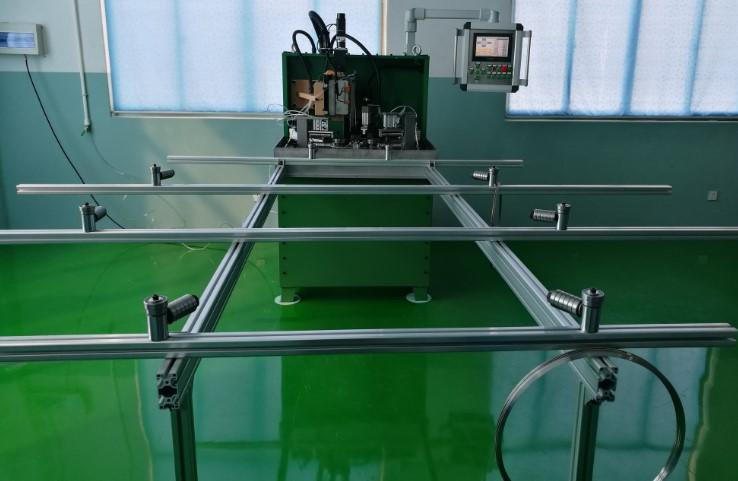

1-1: It is a new concept manufacturing machine for Kammprofile gasket: it has the properties of CNC lathe, and supported by a special designed fast clamping system. After setting the data on PLC, the operator only needs to put the workpiece on the work table, and press “AUTO” button, the machine will complete the whole processing automatically as per your setting data.
On the interface touch screen, preset the data for required kammprofile gasket, by the control of PLC, the variable speed gear motor will drive the workpiece to rotate at high speed, at the same time, the servo system move the cutter to machine the surface of the workpiece.
Special designed fast clamping system can suit different thickness and width of the gasket, don’t need any more custom made clamp for different size.
One normal square shape cutter can machine many kinds of shapes and sizes of gasket; this saves you from expensive cost for cutters.

Enquiry Now

Automatic Kammprofile Gasket machine Details



Specification as following::
STYLE  PX1360C Automatic Kammprofile Gasket Machine

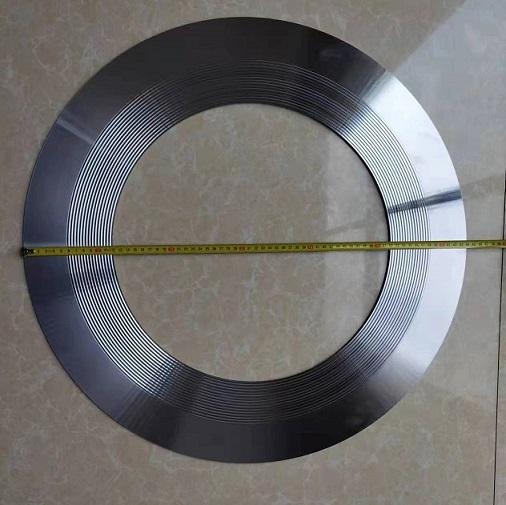

Gasket type Kammprofile with or without centering ring
Wave tooth gasket
Inner diameter groove
Outer diameter groove (cutter holder for this type not included)
Convex Kammprofile gasket
Gasket thickness 2--8mm (one roller to produce up to 4mm is included in standard machine package, other thickness is optional on request with extra charge)
Minimum gasket ID 420mm
Maximum gasket OD No limit
Gasket flatness tolerance 0.05mm
Spindle speed 0--575 r/min
Gasket linear speed 0--170meter/minute
Spindle motor 1.5kw*2   1/5 gear reducer motor
Spindle motor controller 4.0G frequency transformer
XY axis servo motor MS5S-80STE-CS03230B-21P0-S01 *2
Planetary gear reducer 80ZDF5-750T3 *2
XY axis servo motor controller DS5-20P7-PTA *2
PLC XDM-32T4-E     XD-E8X8YT     XD-E8YT
Touch screen TGA63-MT
Total power 5kw
Power supply (as per name plate) 380V 3P4W or 220V 3P3W, 50--60HZ
Air compressor 0.6--0.8MPa
Production rate 30s  Sample: 1.0mm pitch Kammprofile gasket size  φ500*φ470*3mm
Main machine package size 1500*1450*2160mm
Whole machine expand Size 3500*5000*2000mm
Machine net weight 850 kg
